These options apply to TabWare add-on applications. Contact your AssetPoint Account Manager for more information.
The information entered in the TabWare Options window determines:
the behavior and location of the Analytics Dashboard Viewer
the format of Crystal Reports purchase orders and work orders
the location of Crystal Reports inventory and purchase order bin label reports
metrics parameters used to support TabWare Analytics, including upper and lower limits for display gauges
reporting services
To Access TabWare Setup Options:
|
1. |
Click the Setup icon on the TabWare Power Panel. |
|
2. |
Click the Customizing TabWare button on the Setup Power Panel. |
|
3. |
Click the Setup Options button in the Customizing TabWare window. |
|
4. |
Scroll down the Modules block and highlight TabWare Options in the System Setup window. |
|
5. |
Click the Setup Options button to open the Tabware Options window. |
|
6. |
Enter values (scroll down as necessary to complete entry). |
|
7. |
Click OK. |

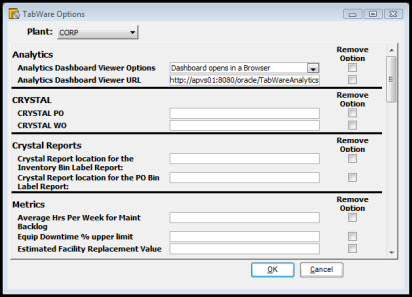

TabWare Options
|
Item |
Entry Value |
|
Plant |
The default value is CORP, which will print standard bin labels globally (for all plants). Use the dropdown list to select individual plants. |
|
Analytics |
|
|
Analytics Dashboard Viewer Options |
Select Dashboard opens in a browser or Dashboard opens in a TabWare container (default). |
|
Analytics Dashboard Viewer URL |
Enter the URL for the Analytics Dashboard Viewer in the following format: http://{AnalyticsServerName}:{port}/twanalytics/TabWareAnalyticsSecurityServlet |
|
CRYSTAL |
|
|
Crystal PO |
|
|
Crystal WO |
|
|
Crystal Reports |
|
|
Crystal Report Location for the Inventory Bin Label Report: |
Enter the following pathname to use the standard Crystal report print template for this report: C:\Inetpub\wwwroot\TabWareXi\Plus\Reports\INVReceiptBinLabels.rpt Refer to the TabWare Support Manual, Bin Label Printing for more information. |
|
Crystal Report Location for the PO Bin Label Report: |
Enter the following pathname to use the standard Crystal report print template for this report: C:\Inetpub\wwwroot\TabWareXi\Plus\Reports\POReceiptBinLabels.rpt Refer to the TabWare Support Manual, Bin Label Printing for more information. |
|
File SaveAs |
|
|
File SaveAs option for Multibyte CSV |
|
|
Metrics |
|
|
Average Hrs Per Week for Maint Backlog |
|
|
Equip Downtime % upper limit |
|
|
Estimated Facility Replacement Value |
|
|
Estimating Accuracy % lower limit |
|
|
Estimating Accuracy % upper limit |
|
|
Inv Turns Per Year lower limit |
|
|
Inv Value % of ERV upper limit |
|
|
Item Type for MRO Inventory |
|
|
Maint Backlog Weeks lower limit |
|
|
Maint Backlog Weeks upper limit |
|
|
Maint Cost % of ERV upper limit |
|
|
Pct Planned Work lower limit |
|
|
Pct PM Overdue upper limit |
|
|
Pct PM Worked lower limit |
|
|
WO Status for Approved/Released work |
|
|
Work Class for PM/PdM Work |
|
|
Reporting Services |
|
|
Inventory Bin Label Report Address |
|
|
PO Receipts Bin Label Report Address |
|
|
PO Report Address |
|
|
Services Credentials |
|
|
Services URL |
|
|
Services Viewer URL |
|
|
SOA |
|
|
SOA URL |
|
|
Workflow |
|
|
Adeptia Developer URL |
|
